Sample1: Multiple tenants and regions
The Contoso Corporation is a multinational business with headquarters in London. Contoso has offices around the world, with important hubs in New York City and Tokyo. Recently, Contoso has migrated their productivity suite to Office 365, with many workloads migrated to Azure.
Contoso tenants

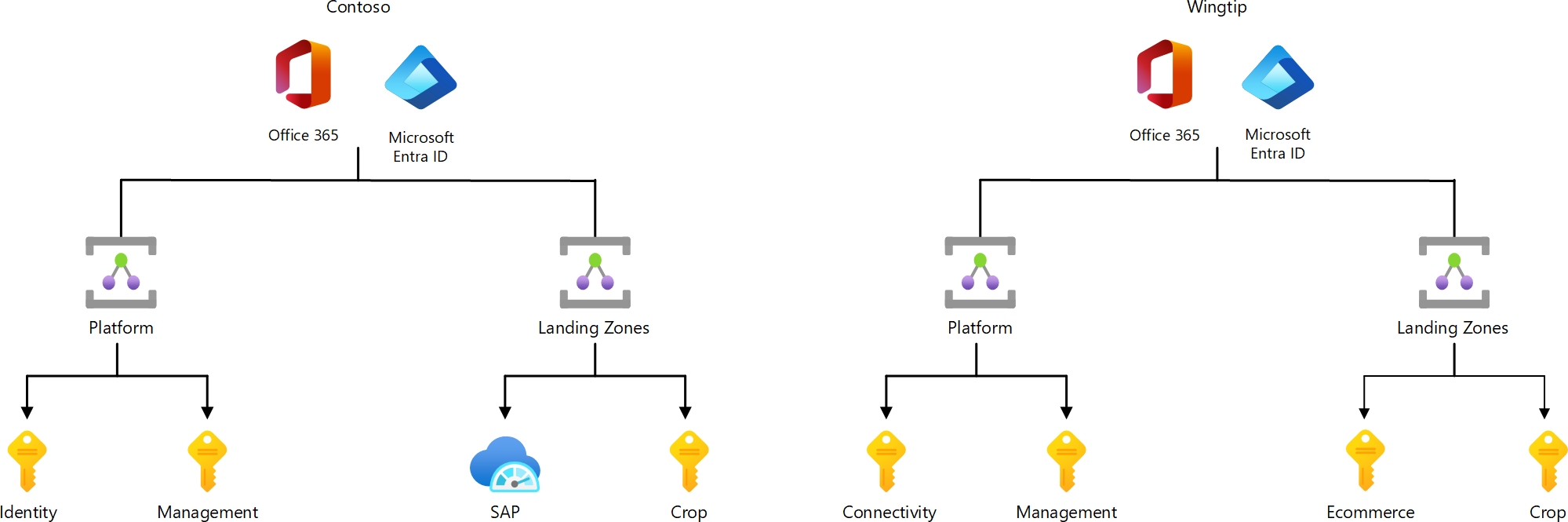

Due to an acquisition several years ago, Contoso has two Azure AD tenants: contoso.onmicrosoft.com and wingtip.onmicrosoft.com. Each tenant has its own Office 365 instance and multiple Azure subscriptions, as shown in the following image:
Contoso compliance and regional deployment
Contoso currently has Azure resources hosted in three different regions: US East, EU North, and West Japan, and strict requirement to keep all data generated in Europe within Europe regions.
Both of Contoso's Azure AD tenants have resources in all three regions: US East, EU North, and West Japan
Contoso resource types and collection requirements
Contoso needs to collect events from the following data sources:
Office 365
Azure AD Sign-in and Audit logs
Azure Activity
Windows Security Events, from both on-premises and Azure VM sources
Syslog, from both on-premises and Azure VM sources
CEF, from multiple on-premises networking devices, such as Palo Alto, Cisco ASA, and Cisco Meraki
Multiple Azure PaaS resources, such as Azure Firewall, AKS, Key Vault, Azure Storage, and Azure SQL
Cisco Umbrella
Azure VMs are mostly located in the EU North region, with only a few in US East and West Japan. Contoso uses Microsoft Defender for servers on all their Azure VMs.
Contoso expects to ingest around 300 GB/day from all of their data sources.
Contoso access requirements
Contoso’s Azure environment already has a single existing Log Analytics workspace used by the Operations team to monitor the infrastructure. This workspace is located in Contoso AAD tenant, within EU North region, and is being used to collect logs from Azure VMs in all regions. They currently ingest around 50 GB/day.
The Contoso Operations team needs to have access to all the logs that they currently have in the workspace, which include several data types not needed by the SOC, such as Perf, InsightsMetrics, ContainerLog, and more. The Operations team must not have access to the new logs that will be collected in Microsoft Sentinel.
Contoso Incident Response requirements
Scenario 1 : Credential access
Multiple passwords reset by user following suspicious sign-in
This scenario makes use of alerts produced by scheduled analytics rules.
MITRE ATT&CK tactics: Initial Access, Credential Access
MITRE ATT&CK techniques: Valid Account (T1078), Brute Force (T1110)
Data connector sources: Microsoft Sentinel (scheduled analytics rule), Azure Active Directory Identity Protection
Description: Fusion incidents of this type indicate that a user reset multiple passwords following a suspicious sign-in to an Azure AD account. This evidence suggests that the account noted in the Fusion incident description has been compromised and was used to perform multiple password resets in order to gain access to multiple systems and resources. Account manipulation (including password reset) may aid adversaries in maintaining access to credentials and certain permission levels within an environment. The permutations of suspicious Azure AD sign-in alerts with multiple passwords reset alerts are:
Impossible travel to an atypical location leading to multiple passwords reset
Sign-in event from an unfamiliar location leading to multiple passwords reset
Sign-in event from an infected device leading to multiple passwords reset
Sign-in event from an anonymous IP leading to multiple passwords reset
Sign-in event from user with leaked credentials leading to multiple passwords reset
Scenario 2 : Compute resource abuse
Multiple VM creation activities following suspicious Azure Active Directory sign-in
MITRE ATT&CK tactics: Initial Access, Impact
MITRE ATT&CK techniques: Valid Account (T1078), Resource Hijacking (T1496)
Data connector sources: Microsoft Defender for Cloud Apps, Azure Active Directory Identity Protection
Description: Fusion incidents of this type indicate that an anomalous number of VMs were created in a single session following a suspicious sign-in to an Azure AD account. This type of alert indicates, with a high degree of confidence, that the account noted in the Fusion incident description has been compromised and used to create new VMs for unauthorized purposes, such as running crypto mining operations. The permutations of suspicious Azure AD sign-in alerts with the multiple VM creation activities alert are:
Impossible travel to an atypical location leading to multiple VM creation activities
Sign-in event from an unfamiliar location leading to multiple VM creation activities
Sign-in event from an infected device leading to multiple VM creation activities
Sign-in event from an anonymous IP address leading to multiple VM creation activities
Sign-in event from user with leaked credentials leading to multiple VM creation activities
Deliverables / Tasks
Task 1: Capture Customer requriements, propose a solution and Handover the requirements to technical team and create a project plan with activities.
Task 2: Create a High Level Implementation Design and Structure for Implemenation of Security Operations in Contoso
Task 3: Create a Incident Response flow chart for two scenrios given by Contoso
Task 4: Customer is looking for Metrics and Dashboards regarding the Day to Day Security Operations, based on scenrio, create KPI and Metric Dashboards.
